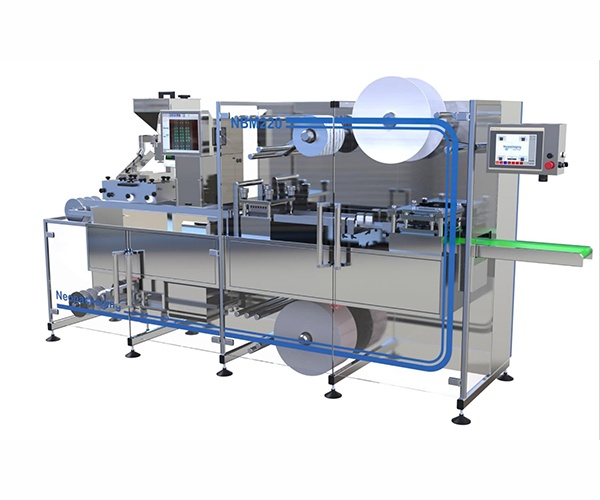

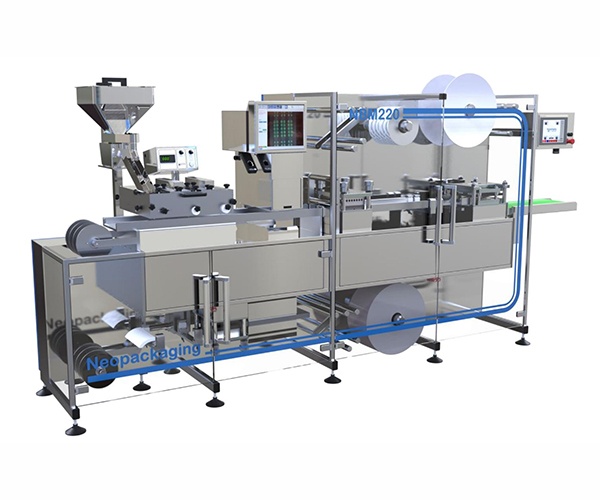

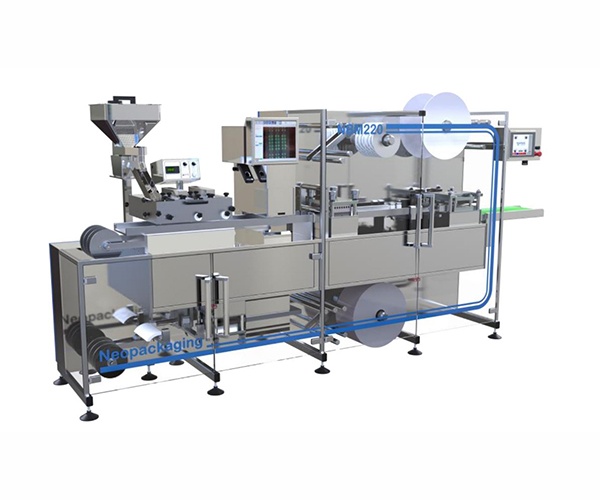

The compact and modular design allows customizing the machines with many accessories and optional devices to give solution to different applications and production needs.
MAIN FEATURES:
Simple operation:
- It is not necessary to have highly experienced operators.
Quick setup:
- Reduction of downtime for format changes.
High reliability:
- Reduction of waste and rework.
Compact design:
- Small footprint needed.
Low maintenance:
- Reduction of downtime for maintenance.
- It is not necessary to have highly experienced technicians.
High efficiency:
The sum of the different characteristics optimizes the production.
| NBM-160 PRODUCTION FEATURES | |
| PRODUCTION SPEED | 200 blister/min. |
| MAXIMUM SPEED | Up to 60 cycles/min. |
| MAXIMUM FORMING DEPTH | 12mm. |
| MAXIMUM FOIL WIDTH | 160mm. |
| MAXIMUM INDEX | 130mm. |
| USEFUL AREA | 150mm x 125mm. |
|
FORMING FOIL |
PVC / PVC-PVDC / Aclar® / Alu-Alu / PET-PE ø max 500mm. |
| LIDDING FOIL | Alu 20 / Alu 25 / Papel / PE ø max 250mm. |
| NBM-160 TECHNICAL DATA | |
| POWER SUPPLY | 3 X 220/380 V 50/60 Hz. |
| POWER CONSUMPTION | 7 kW. |
| AIR CONSUMPTION | 100L/min @ 6bar. |
| COOL WATER | 250L/h @ 18°C |
| APPROXIMATE WEIGHT | 800kg. |
| NBM-220 PRODUCTION FEATURES | |
| PRODUCTION SPEED | 300 blister/min. |
| MAXIMUM SPEED | Up to 60 cycles/min. |
| MAXIMUM FORMING DEPTH | 12mm. (optional up to 30mm.) |
| MAXIMUM FOIL WIDTH | 220mm. |
| MAXIMUM INDEX | 160mm. |
| USEFUL AREA | 210mm x 155mm. |
|
FORMING FOIL |
PVC / PVC-PVDC / Aclar® / Alu-Alu / PET-PE ø max 500mm. |
| LIDDING FOIL | Alu 20 / Alu 25 / Papel / PE ø max 250mm. |
| NBM-220 TECHNICAL DATA | |
| POWER SUPPLY | 3 X 220/380 V 50/60 Hz. |
| POWER CONSUMPTION | 12 kW. |
| AIR CONSUMPTION | 150L/min @ 6bar. |
| COOL WATER | 300L/h @ 18°C |
| APPROXIMATE WEIGHT | 1300kg. |
